Place of Origin:
Guangdong of China
Brand Name:
Zhongji
Certification:
ISO9001, GB
Model Number:
LDZ(K)（0.01-0.2）-0.8
Description of product :
1. Small in size, save more space
2. Heating automatic. easy to install, easy to operate, easy to maintain
3. The adjustable pressure controller can be adjusted by your need.
4. High quality heating tube, can adjust steam power
5. Inner tank is carbon steel materials, outer is stainless steel or carbon steel.
Multiple security Protection:
1. The safety valve relief automatically when the pressure reached the setting pressure.
2. Stop heating automatically when there is no water in the tank.
3. Stop heating automatically when there is no electricity.
4. Stop heating automatically when stainless steel mechanical adjustable pressure controller reached the setting pressure.
Application Range:

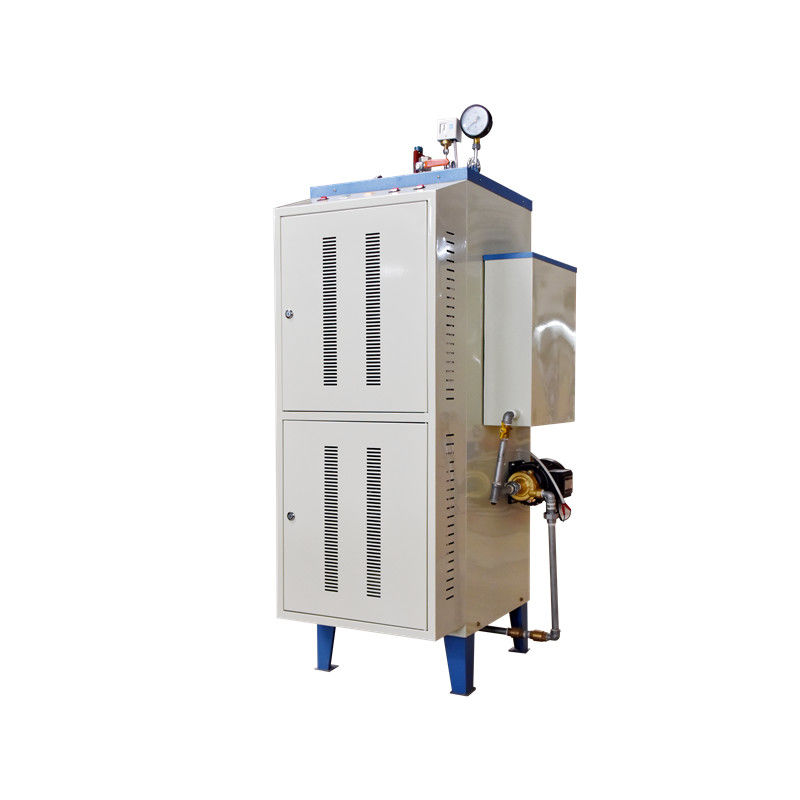

An electric steam generator, also known as an electric steam boiler, is a device that uses electricity to produce steam. It is commonly used in various industrial settings where steam is required for heating, sterilization, or power generation.
These devices are commonly used in industries such as food processing, pharmaceuticals, textiles, chemical manufacturing, and power generation. They are also utilized in steam cleaning applications and for steam baths in wellness centers.
It's worth noting that the specific design and features of electric steam generators can vary depending on the manufacturer and intended application.
Technical Parameter:
| Steam temperature | 175℃ |
| Input power supply | 3 phase 5 wires 380V |
| Alternating current | |
| frequency:50Hz | |
| Leakage switch | 300A |
| Electric current | 216A |
| Main power cord | 95Square mm standard copper wire |
| Control | Gear 6 |
| Machine size | 850*720*178mm |
| Water capacity | 49L |
| Power of water pump | 550W |
| Diameter of water intake | DN15 |
| Diameter of sewage outlet | DN25 |
| Diameter of steam outlet | DN25 |
| Diameter of safety valve | DN20 |
