Place of Origin:
Guangdong of China
Brand Name:
Zhongji
Certification:
ISO9001, GB
Model Number:
LDZK-0.04-0.7

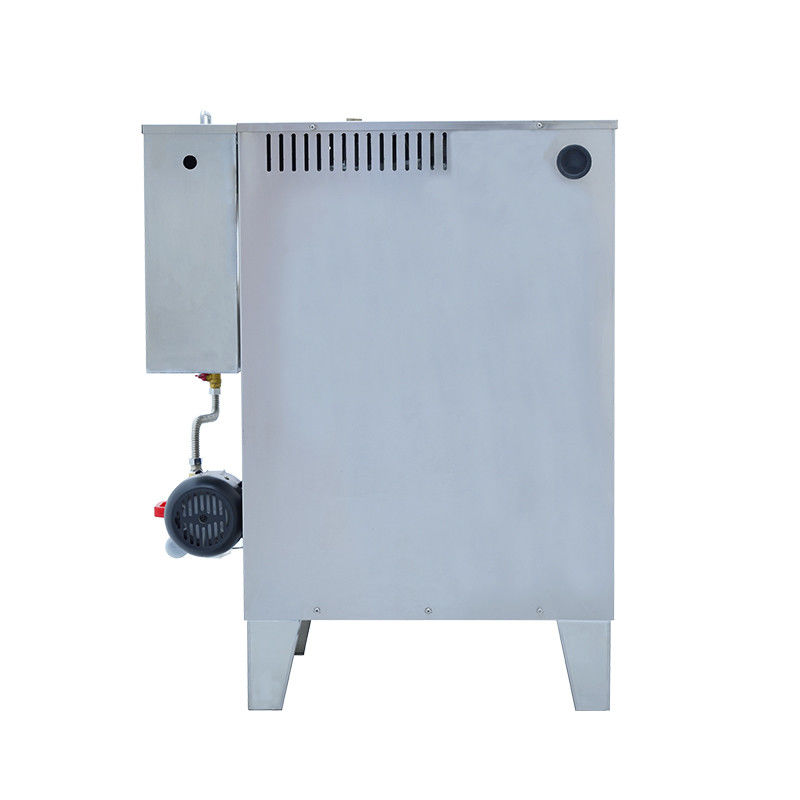

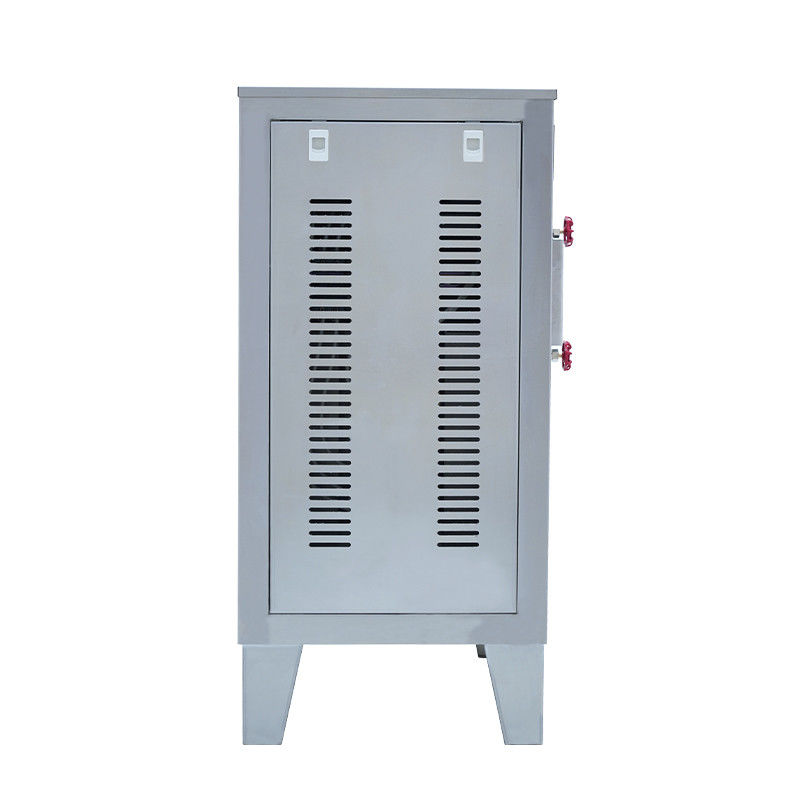

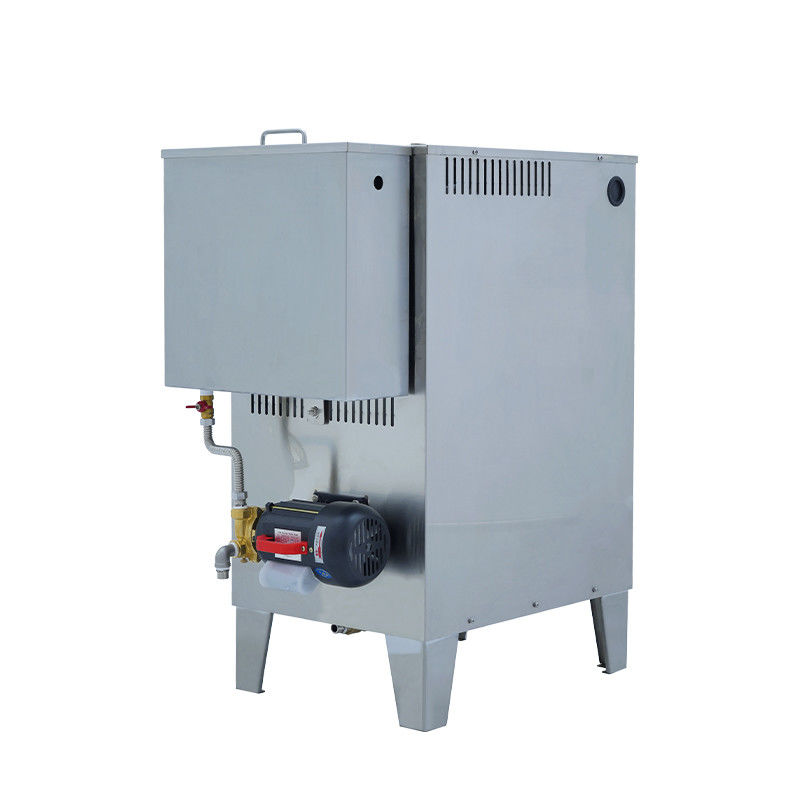

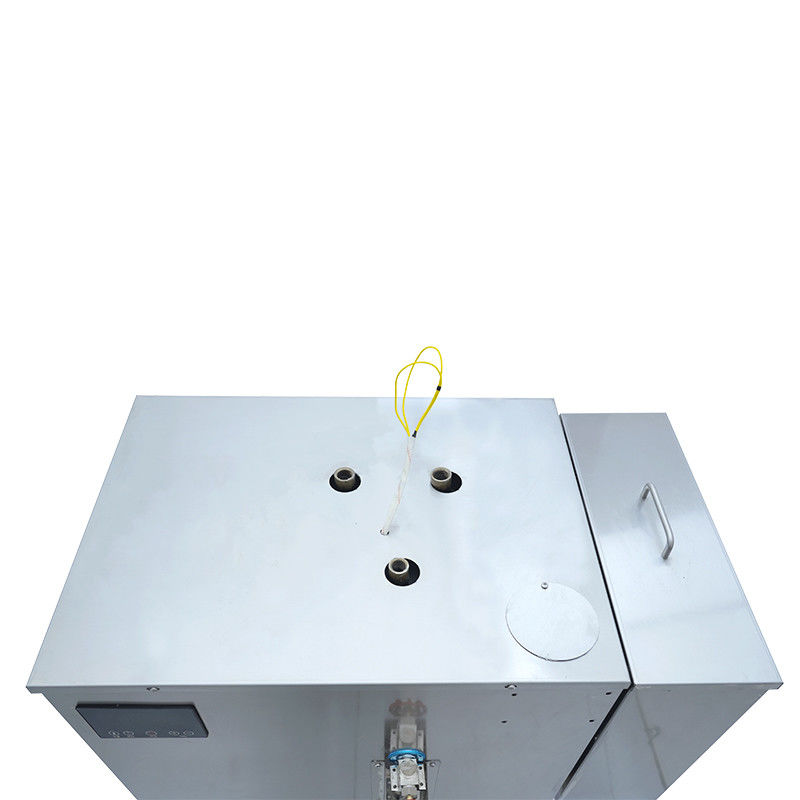

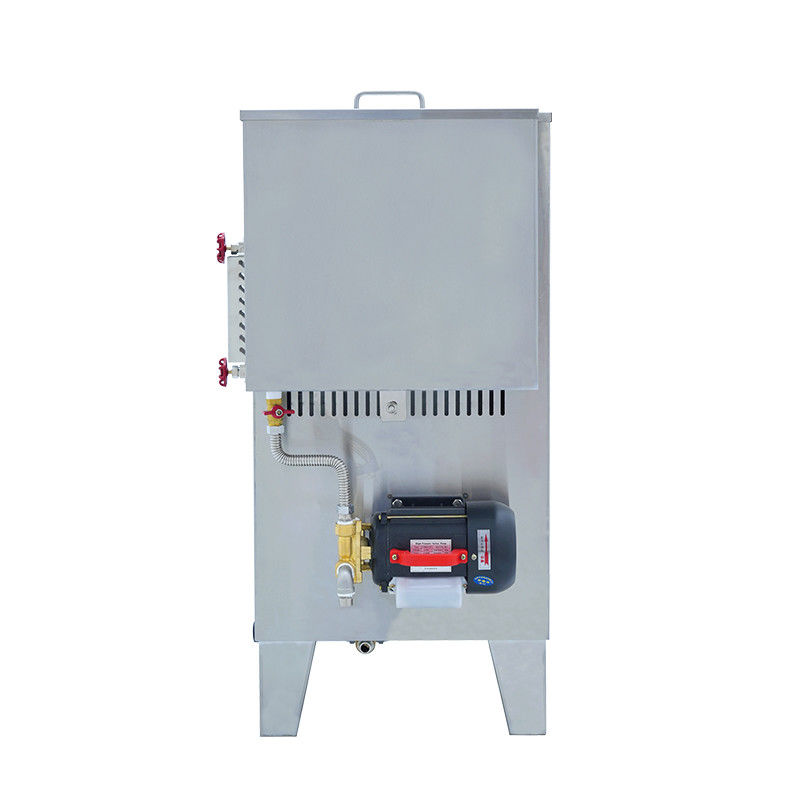

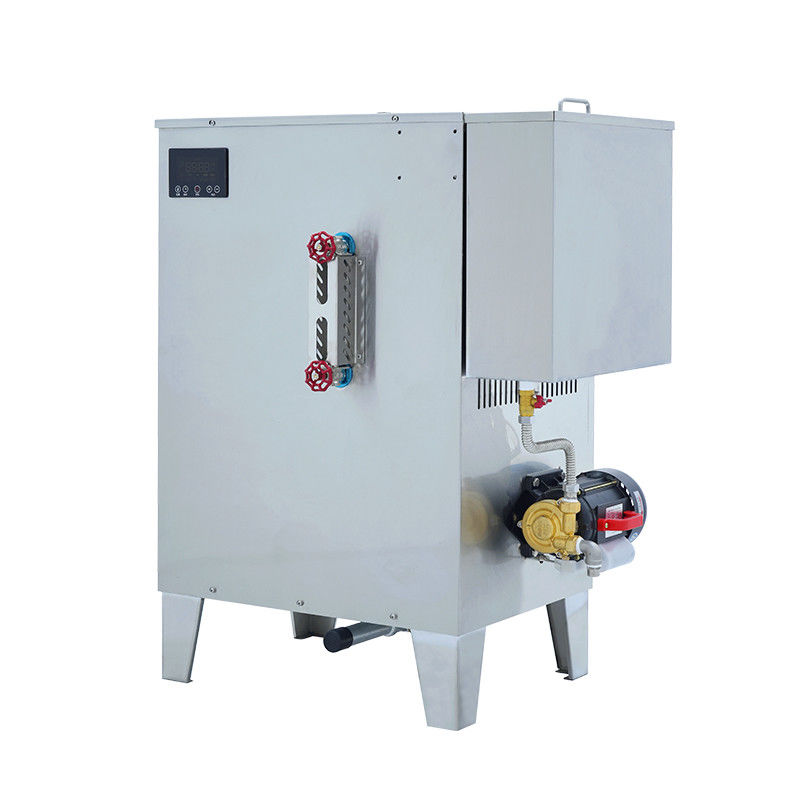

Product Name: High Pressure Electric Steam Generator
Item No.:LDZK-0.04-0.7
An electric steam generator, also known as an electric boiler, is a device that uses electricity to heat water and generate steam. It is typically used in applications where steam is required for heating, sterilization, cleaning, or power generation.
Electric steam generators work by passing an electric current through a resistive heating element, which is immersed in water. The resistance of the heating element converts the electrical energy into heat, raising the temperature of the water and producing steam.
Characteristics:
1. Easy maintenance: daily maintenance, only need to drain once or twice a day when off work.
2. Low noise: quiet operation, effectively improving the working environment.
3. Convenient operation, precise control
4. Environmental protection: The emission of carbon monoxide is zero
5. Durable: all stainless steel material, overall reduction of material oxidation, long service life.
6. Small size: light and handy, easy to install, and does not occupy working space.
7. Efficiency:They can provide instant steam on demand, eliminating the need for preheating and minimizing energy waste.
8. Safety: There are 6 major functions such as water cut, overheating, overtemperature, overpressure, Safety measures, all-round protection.
9. Wide applicability: suitable for catering industry, hospital disinfection, sauna, school canteen, greenhouse equipment, hair salons, dishwashers, food processing factories etc.
Technical Parameter
| LDZK-0.04-0.7 | |
| Evaporation capacity | 35KG |
| Power | 24KW |
| Related voltage | 0.7MPa |
| Steam temperature | 170℃ |
| Input power supply | 3 phase 5 wires 380V |
| Alternating current | |
| frequency:50Hz | |
| Leakage switch | 63A |
| Electric current | 36A |
| Main power cord | 10 Square mm standard copper wire |
| Control | Gear 2 |
| Machine size | 760*460*1220mm |
| Machine weight | 80KG |
| Water capacity | 29L |
| structure | External water pump of auxiliary water tank |
| Power of water pump | 550W |
| Diameter of water intake | DN15 |
| Diameter of sewage outlet | DN25 |
| Diameter of steam outlet | DN15 |
| Diameter of safety valve | DN15 |
| Power consumption /hour | 24KW |
| Materials | Inner material-SUS 304,outer- SUS 201 |
| Heater(Qty) | Double heater |
