Place of Origin:
Guangdong of China
Brand Name:
Zhongji
Certification:
ISO, GB
Model Number:
SZQ-ZBTGWR-100

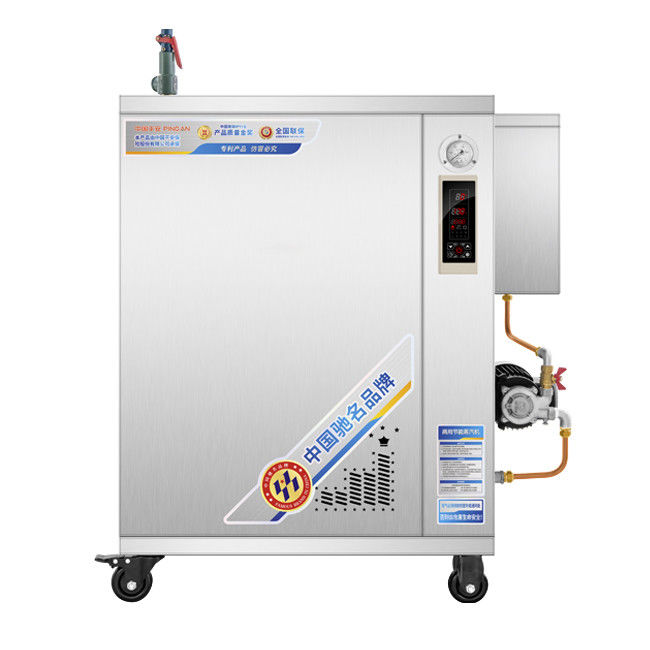

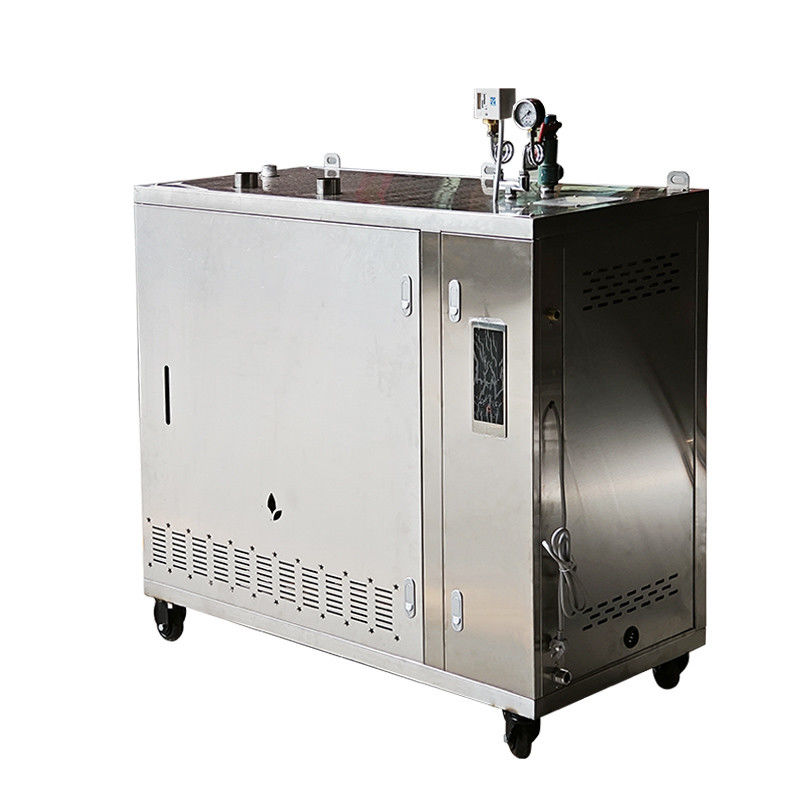

SZQ-ZBTGWR-100 High Temperature 0.7Mpa Gas Fired Steam Generator
Description of product :
1. Small in size, save space

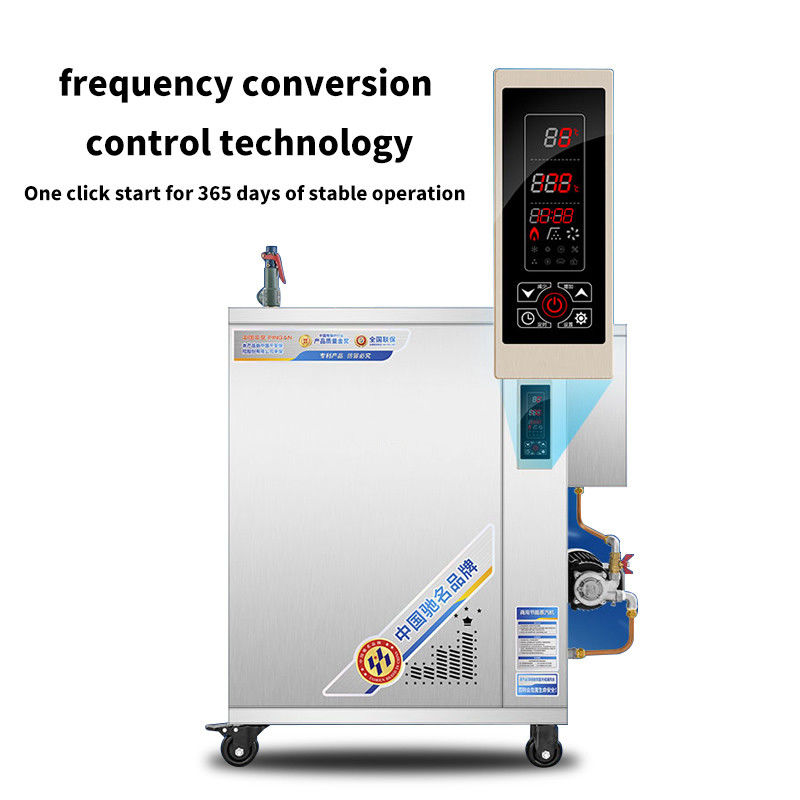

2. Heating automatic. Simple circuit, easy to maintain
3. The adjustable pressure controller can be adjusted by your need.
4. High quality heat exchange tube, can adjust fire power and steam power
5. Full stainless Steel Material
Multiple security Protection:
1. The safety valve relief automatically when the pressure reached the setting pressure.
2. Stop heating automatically when there is no water in the tank.
3. Stop heating automatically when there is no electricity.
4. Stop heating automatically when there is no gas.
5. Stop heating automatically when stainless steel mechanical adjustable pressure controller reached the setting pressure.
Application Range:
Gas steam generators, also known as gas-fired steam boilers, are versatile devices that find application in various industries and settings. Here are some common application ranges for gas steam generators:
food processing, pharmaceuticals, chemical manufacturing, textile production, paper mills, and refineries, where they provide the necessary steam for these processes.
Technical Parameter:
| Specification | 50P |
| Evaporation/hour | 100KG |
| Power(thermal load) | 75KW |
| Thermal efficiency | 94% |
| Rated steam pressure | 0~0.7MPa |
| Machine size(mm) | 980X520X1150mm |
| Water capacity | 27L |
| Steam temperature | 100-170℃ |
