Place of Origin:
Guangdong of China
Brand Name:
Zhongji
Certification:
ISO, GB
Model Number:
ZQJ-100KG-40P

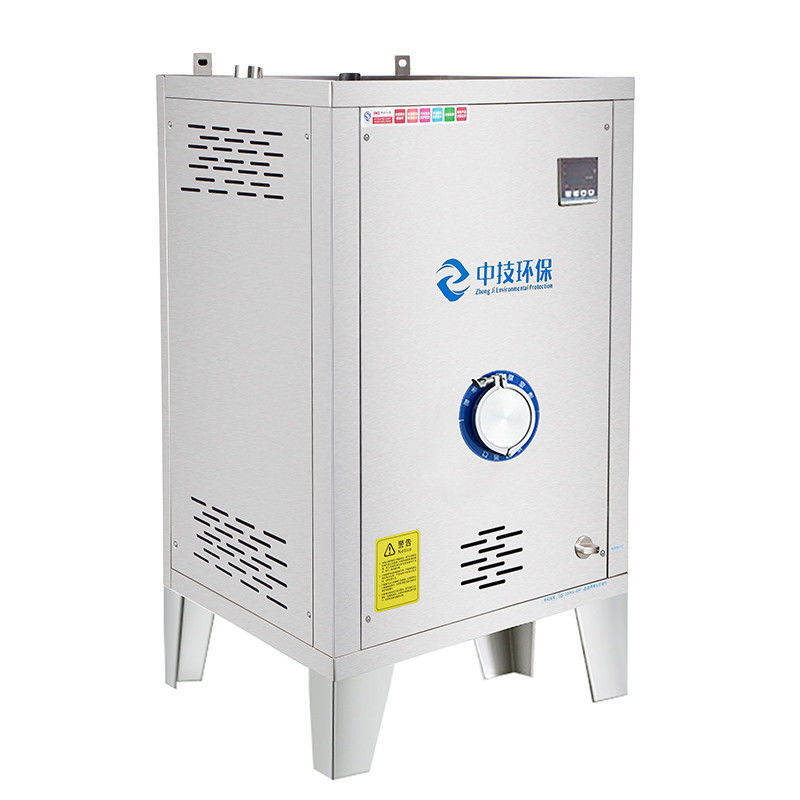

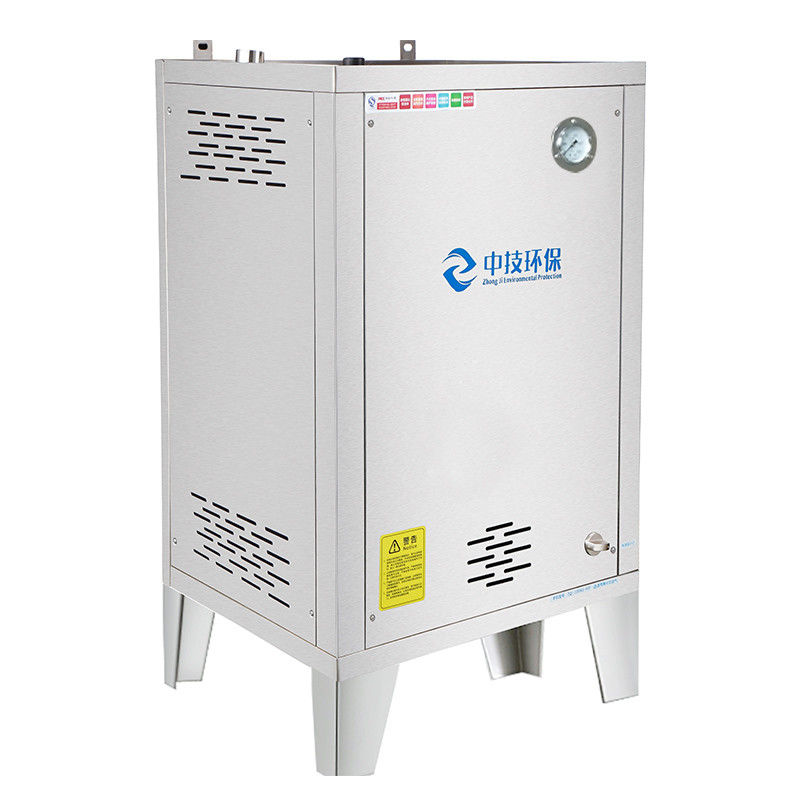

ZQJ-100KG-40P Low Pressure 0.3Mpa Gas Fired Steam Generator
Description of product :
1. Small in size, save space
2. Heating automatic. Simple circuit, easy to maintain
3. The adjustable pressure controller can be adjusted by your need.
4. High quality heat exchange tube, can adjust fire power
5. Full stainless Steel Material
Multiple security Protection:
1. The safety valve relief automatically when the pressure reached the setting pressure.
2. Stop heating automatically when there is no water in the tank.
3. Stop heating automatically when there is no electricity.
4. Stop heating automatically when there is no gas.
5. Stop heating automatically when stainless steel mechanical adjustable pressure controller reached the setting pressure.
Application Range:
Gas steam generators, also known as gas-fired steam boilers, are versatile devices that find application in various industries and settings. Here are some common application ranges for gas steam generators:
food processing, pharmaceuticals, chemical manufacturing, textile production, paper mills, and refineries, where they provide the necessary steam for these processes.
Technical Parameter:
| Maximum working pressure | Mpa | 0.3 |
| Type | ZQJ-100KG-40P | |
| Evaporation capacity | kg | 100 |
| liquefied gas | kg/Hr | 4.5 |
| Natural gas | m3/Hr | 5.5 |
| Rated thermal load | kw | 60 |
| Hydraulic pressure | Mpa | 0.2-0.5 |
| Gas pressure | Pa | 2800/2000 |
| Rated voltage | V | AC220V-50HZ |
| Maximum steam temperature | ℃ | 120 |
