Place of Origin:
Guangdong, China
Brand Name:
Zhongji
Certification:
ISO9001
Model Number:
ZQJ-300KG-120P

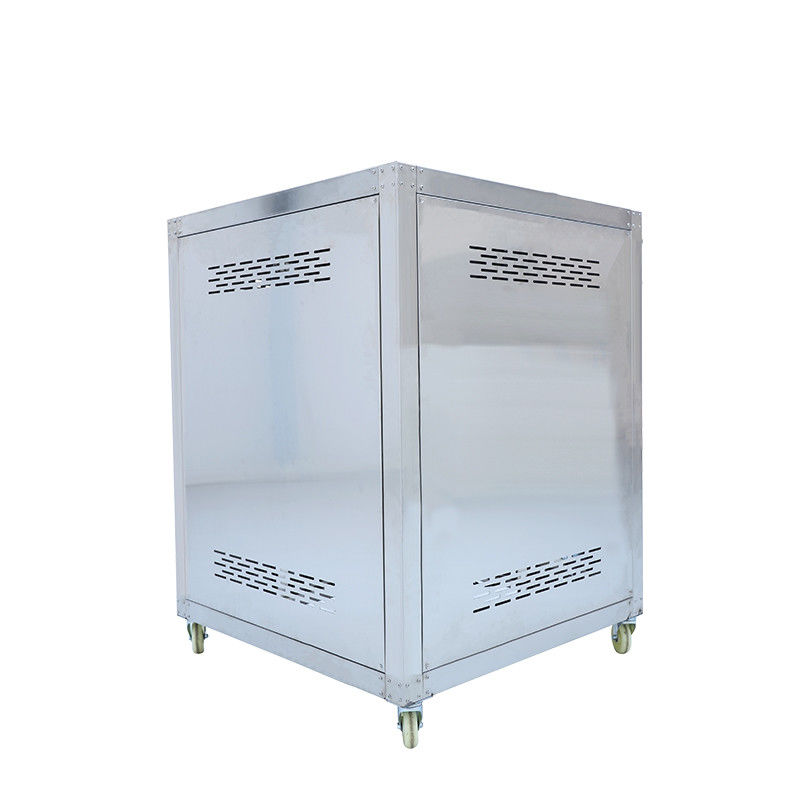

ZQJ-300KG-120P Low Pressure Gas Fired Steam Generator
Description of product :
1. Small in size, save space
2. Heating automatic. Simple circuit, easy to maintain
3. The adjustable pressure controller can be adjusted by your need.
4. High quality heat exchange tube, can adjust fire power
5. Full stainless Steel Material, suitable for food processing
Multiple security Protection:
1. The safety valve relief automatically when the pressure reached the setting pressure
2. Stop heating automatically when there is no water in the tank
3. Stop heating automatically when stainless steel mechanical adjustable pressure controller reached the setting pressure.
Technical Parameter:
| Item No. | ZQJ-300KG-120P |
| Evaporation capacity | 300KG |
| Power (thermal load) | 180KW |
| Machine dimensions | 1000*1000*1300mm |
| Weight | 150KG |
| Water capacity | 45L |
| Steam temperature | 103-108℃ |
| LPG Gas consumption | 13.5KG/h |
| Natural Gas consumption | 16.5m³/h |
| Steam pressure | 0.08-0.15Mpa |
Application Range:
Gas steam generators, also known as gas-fired steam boilers, are versatile devices that find application in various industries and settings. Here are some common application ranges for gas steam generators:
food processing, pharmaceuticals, chemical manufacturing, textile production, paper mills, and refineries, where they provide the necessary steam for these processes.
