Place of Origin:
Guangdong of China
Brand Name:
Zhongji
Certification:
ISO, GB
Model Number:
ZQJ-500KG-0.7Mpa

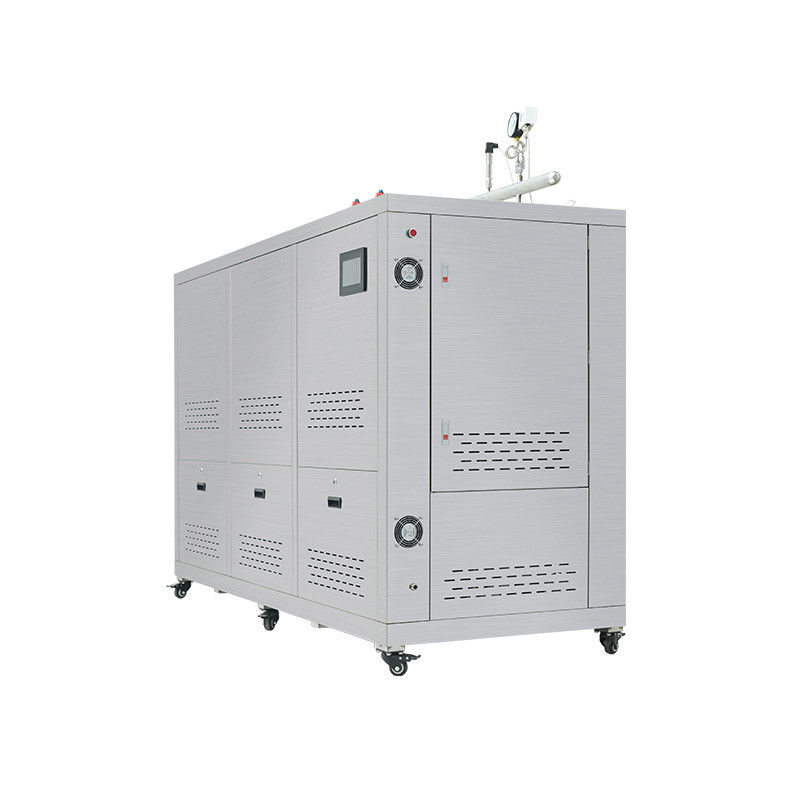

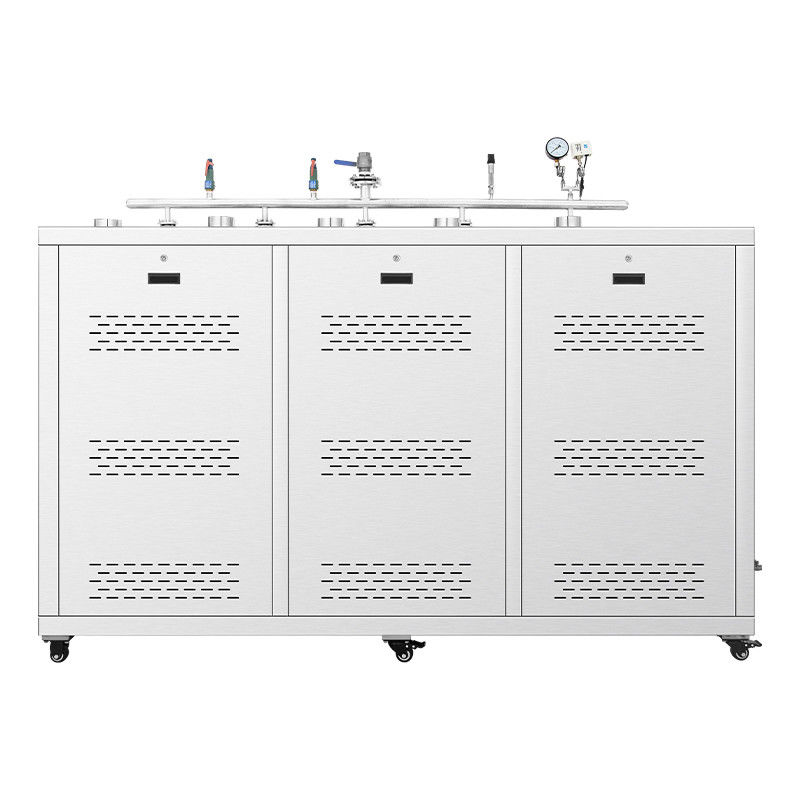

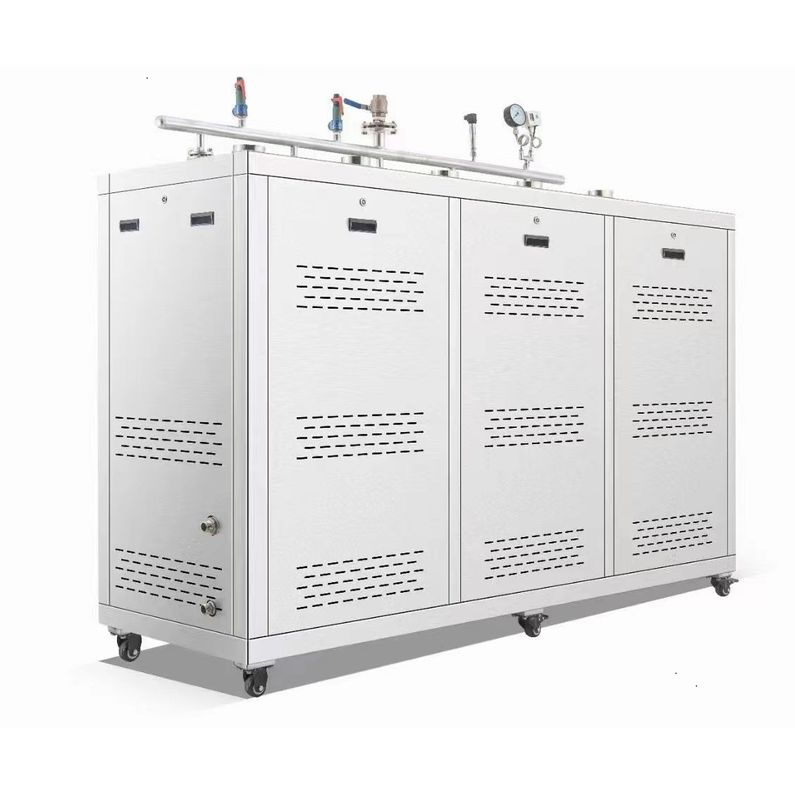

Product Name: Gas Fired Module Furnace
Item No.: ZQJ-500KG-0.7Mpa
Characteristics:
1. Easy maintenance: daily maintenance, only need to drain once or twice a day when off work.
2. Low noise: quiet operation, effectively improving the working environment.
3. Convenient operation
4. Environmental protection: The emission of carbon monoxide is zero
5. Durable: all stainless steel material, overall reduction of material oxidation, long service life.
6. Small size: light and handy, easy to install, and does not occupy working space.
7. Safety: There are 6 major functions such as water cut, overheating, overtemperature, overpressure, Safety measures, all-round protection.
8. Wide applicability: suitable for catering industry, hospital disinfection, sauna, school canteen, greenhouse equipment, hair salons, dishwashers, food processing factories etc.
Technical Parameter
| Steam Generator Parameter Table | ||
| ZQJ-500KG-0.7Mpa | ||
| Rated evaporation capacity(kg/h) | 500 | |
| Steam Pressure(Mpa) | 0.7 | |
| Water Pressure(Mpa) | 0.5-0.8 | |
| Gas Pressure/Pa (LPG gas/Natural gas) |
2800/2000 | |
| Rated voltage(V) | AC220V-50Hz | |
| Equipment weight(kg) | 400 | |
| Steam temperature (℃) | 100-170℃(Adjustable) | |
Gas consumption |
LPG gas(kg/h) | 29 |
| Natural gas(Nm³/h) | 35 | |
| Dimension(mm) | 2500*950*1600 | |
| Steam outlet Spec. | DN15 flange*5 (main outlet size DN40 flange) |
|
| Water inlet Spec. | DN40 inner tooth | |
| Gas inlet Spec. | DN40 inner tooth | |
| Sewage outlet Spec. | DN40 inner tooth*5 | |
| Ignition mode | Intelligent pulse ignition | |
| Steaming time | 120-150s | |
| Water pump power | 750W*5 | |
| Fan power | 180W*5 | |
