Name: Automatic Custom Gas Steam Generator Low Pressure Floor Standing
Brand: Foshan Zhongji Environmental Protection Equipment Co., Ltd.
SKU: ZQJ-60KG-22P
Price: 475.00 USD
Availability: InStock

Home > products > Gas Steam Generator >

Automatic Custom Gas Steam Generator Low Pressure Floor Standing

Custom Gas Steam Generator

Automatic Gas Steam Generator

Custom Steam Generator Low Pressure

Place of Origin:

Guangdong, China

Brand Name:

Zhongji

Certification:

ISO9001

Model Number:

ZQJ-60KG-22P

Request A Quote

Automatic Custom Gas Steam Generator Low Pressure Floor Standing

Product Details

Burner:

Customized

Capacity:

Customized

Control System:

PLC

Design Pressure:

0.1MPa

Steam Temperature:

100℃-105℃

Fuel:

Gas

Fuel Consumption:

Customized

Installation:

Floor Standing/Wall-mounted

Pressure:

Low Pressure

Start Mode:

Automatic

Thermal Efficiency:

≥90%

Type:

Low Pressure Gas Steam Generator

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 sets

Price

USD400-550/set

Packaging Details

Carton box or wooden case

Delivery Time

5-8 working days

Payment Terms

Western Union, T/T, L/C, MoneyGram

Supply Ability

2000set per month

45KW High Temperature Gas Steam Generator Customized Installation

Get Best Price

75kw Natural Gas Steam Generator Home Use 0.3Mpa Low Pressure

Get Best Price

Stainless Steel Horizontal Steam Generator 50HZ Gas Powered Steam Generator GB

Get Best Price

Video

High Pressure LPG Steam Generator 0.7Mpa Gas Fired Steam Boiler

Get Best Price

0086-13726653830

lilychan85@163.com

Contact Now

Product Description

Product Name:ZQJ-60KG-22P Low Pressure Gas Fired Steam Generator

Item No.: ZQJ-60KG-22P;

Description of product :

1. Small in size, save space

2. Heating automatic. Simple circuit, easy to maintain

3. The adjustable pressure controller can be adjusted by your need.

4. High quality heat exchange tube, can adjust fire power
5. Full stainless Steel Material, suitable for food processing

Multiple security Protection:

1. The safety valve relief automatically when the pressure reached the setting pressure

2. Stop heating automatically when there is no water in the tank

3. Stop heating automatically when stainless steel mechanical adjustable pressure controller reached the setting pressure.

Technical Parameter

Feature	fully automatic, high efficiency, environmental protection
Place of Origin	China
Model Number	ZQJ-60KG-22P
Rated steam capacity	45kg/h
Rate power	33KW
Hydraulic pressure	0.1-0.5Mpa
Liquefied gas consumption	2.5kg/h
Natural gas consumption	3.5m³/h
Water volume	29.5L
Color	customized
Certificate	ISO,GB
Rated voltage	AC220V-50Hz
Gas Pressure/pa	2800/2000/1000
Rated voltage/V	AC220V-50HZ
Fan power/W	120W
Machine weight/kg	50
Overall dimensions/mm	640670920

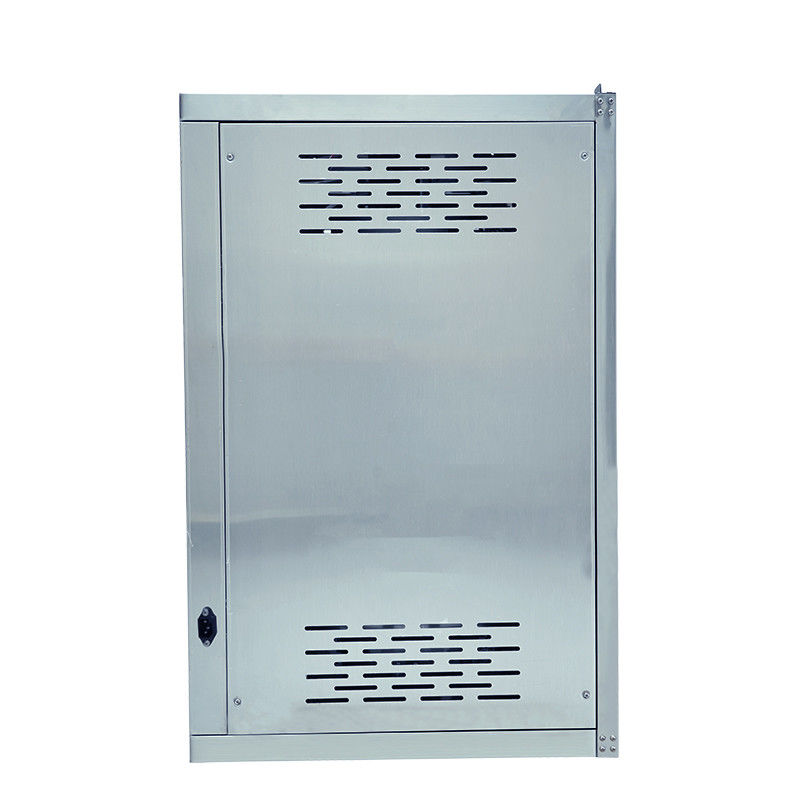

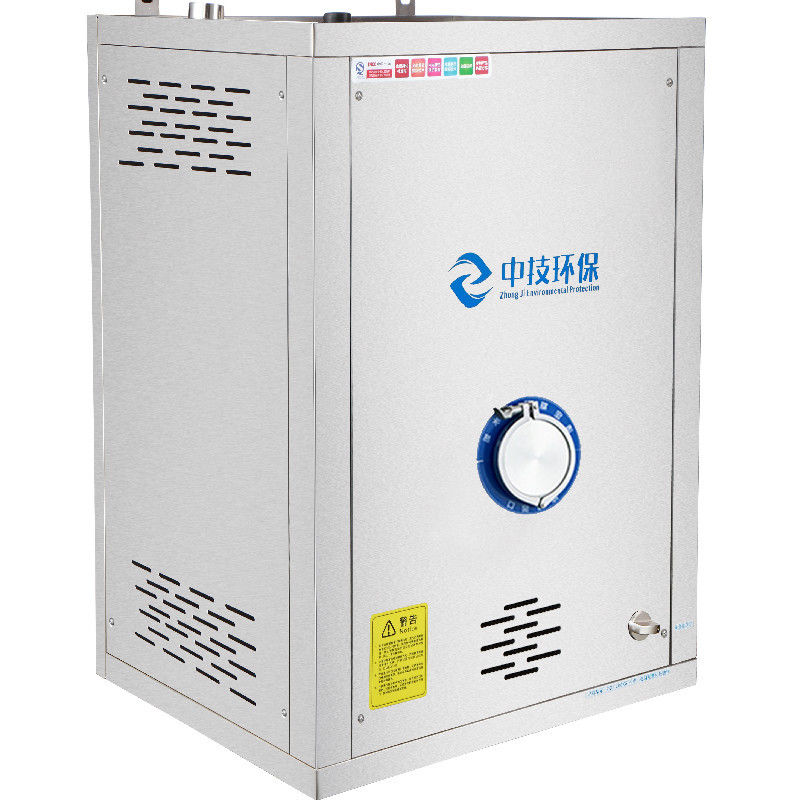

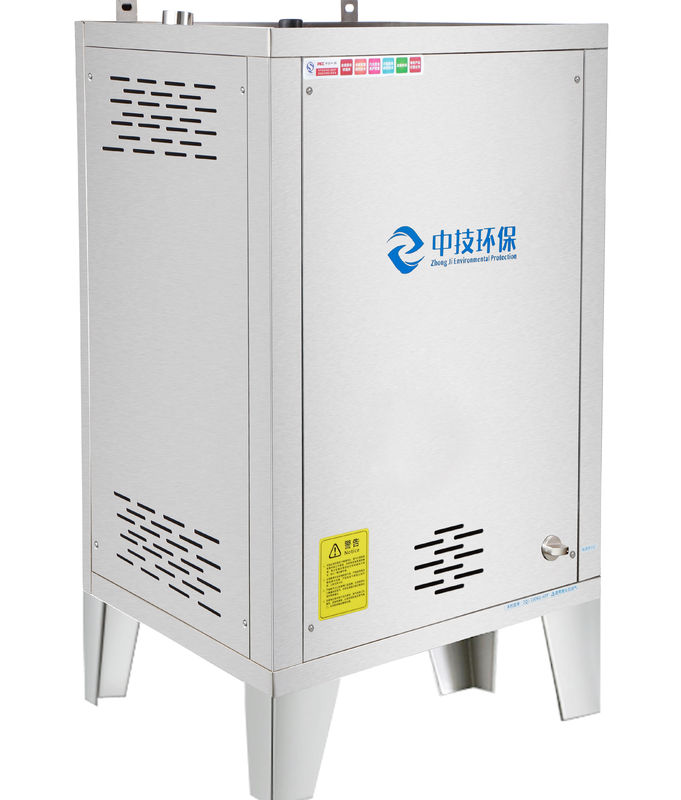

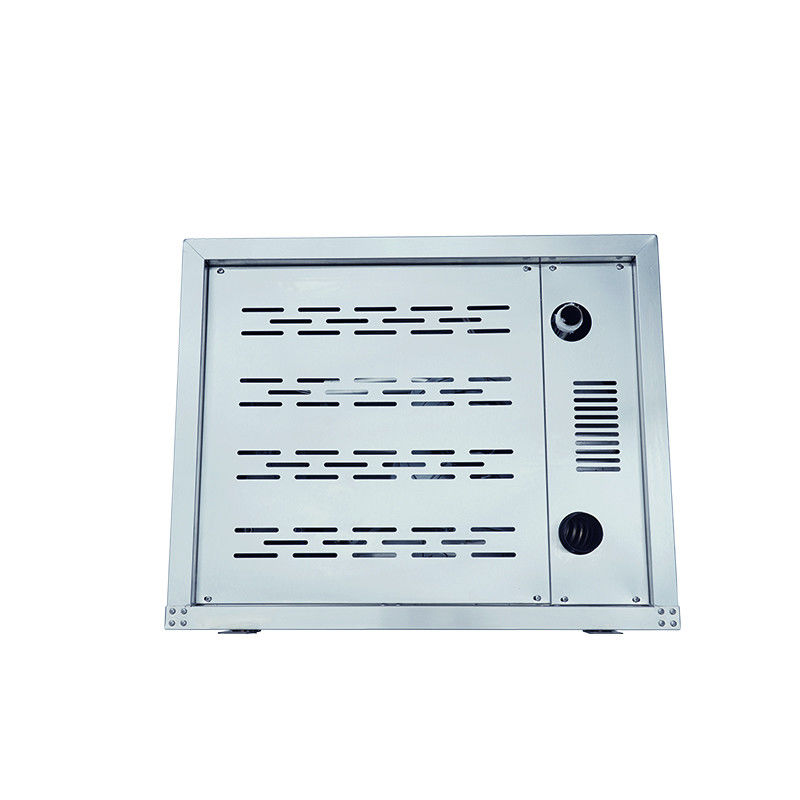

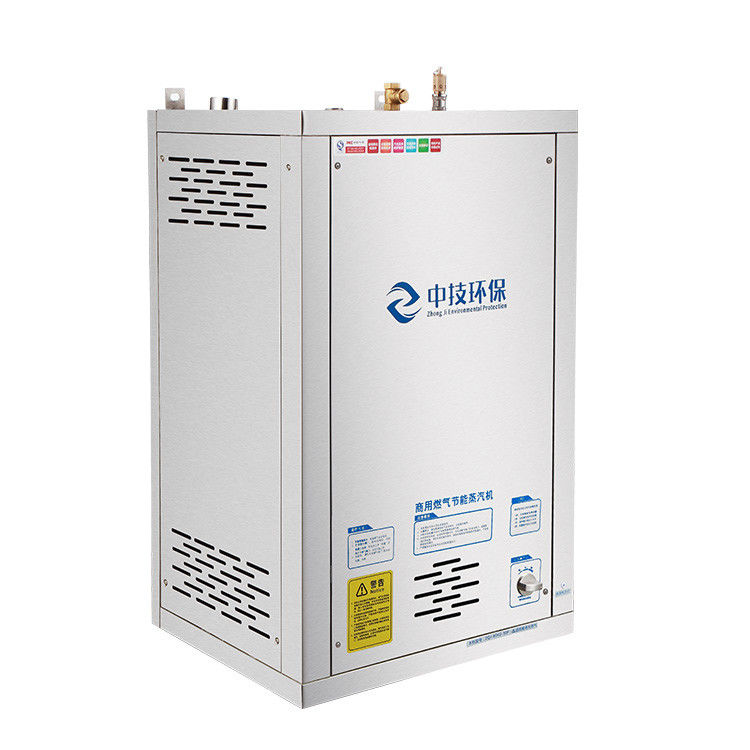

Automatic Custom Gas Steam Generator Low Pressure Floor Standing 0

Automatic Custom Gas Steam Generator Low Pressure Floor Standing 2
