Place of Origin:
Guangdong of China
Brand Name:
Zhongji
Certification:
ISO9001, GB, CE
Model Number:
LSS0.08-0.7-Y/Q

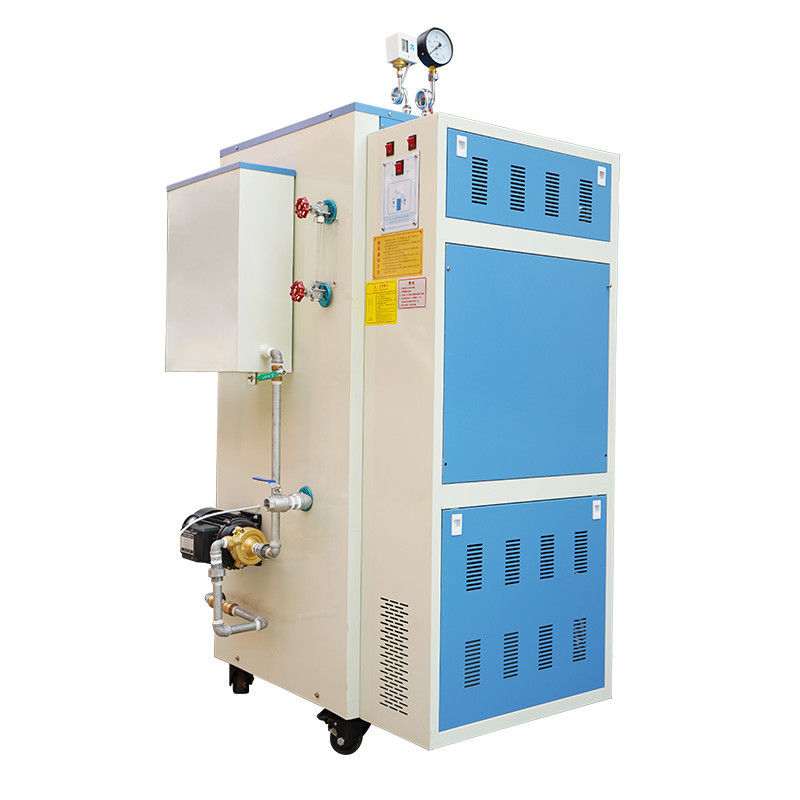

Oil or Gas Fired Plus Electric Hybrid Power Steam Generator 80kg/hr with 170℃
Product Description
A hydrid power system steam generator which can be used with gas, oil, Electric heating, combines the use of steam power with another form of energy or power source, typically an electric heating. This hydridization allows for improved efficiency, reduced emissions, and increased flexibility in power generation.
Fuel: Oil-fired steam generators use liquid fuels such as diesel, heavy oil, or residual oil.
Gas-fired steam generators use natural gas or liquefied petroleum gas (LPG) as fuel.
Electric heating steam generators use electricity 3 phase 220V, 380V, 440V voltage.
Characteristics:
1. Easy maintenance: daily maintenance, only need to drain once or twice a day when off work.
2. Low noise: quiet operation, effectively improving the working environment.
3. Convenient operation
4. Environmental protection: The emission of carbon monoxide is low
5. Durable: inner tank is carbon steel, overall reduction of material oxidation, long service life.
6. Small size: light and handy, easy to install, and does not occupy working space.
7. Safety: There are 6 major functions such as water cut, overheating, overtemperature, overpressure, Safety measures, all-round protection.
Wide applicability:
suitable for marine transportation, power generation, catering industry, hospital disinfection, sauna, school canteen, greenhouse equipment, hair salons, dishwashers, food processing factories, garment factories etc.
Technical parameter:
| Power | 80KG | |
| Type | LSS0.08-0.7-Y/Q | |
| Evaporation capacity | 80KG | |
| Steam temperature | 170 | |
| liquefied gas(KG/H) | 7.5 | |
| Natural gas(Nm³/h) | 6.5 | |
| Diesel (KG/H) | 5.5 | |
| Electric consuption | 48KW | |
| Related voltage(MPA) | 0.7 | |
| Machine self weight | 371KG | |
| Overall dimensions | 101*81*182CM | |
| Diameter of water intake | DN15 | |
| Diameter of sewage outlet | DN20 | |
| Diameter of steam outlet | DN20 | |
| Diameter of safety valve | DN15 | |
