Place of Origin:
Guangdong of China
Brand Name:
Zhongji
Certification:
ISO9001, GB
Model Number:
1T-0.7-S

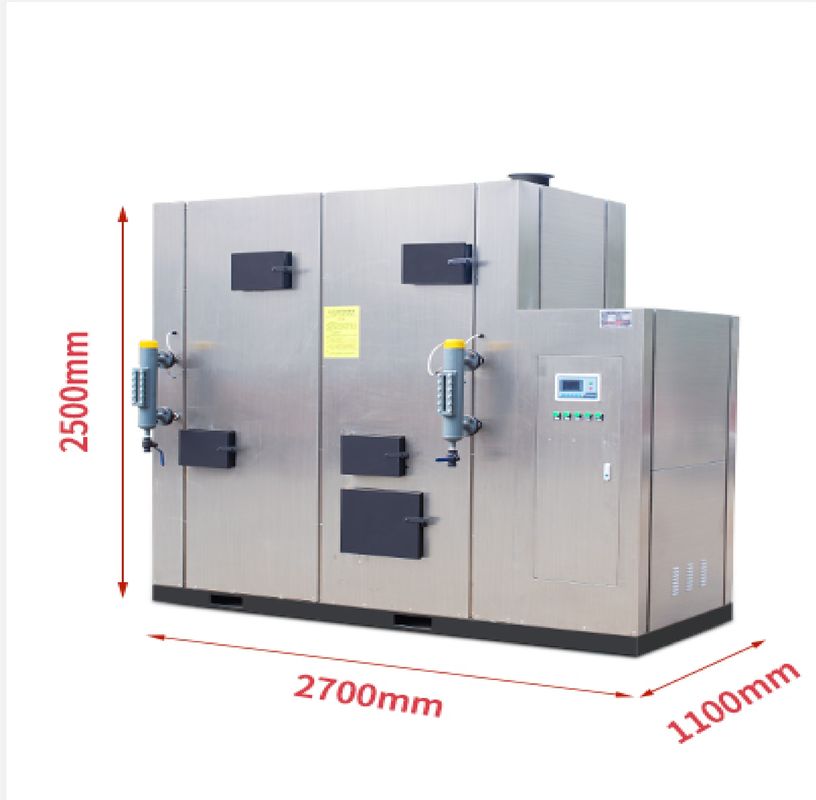

1T-0.7-S Biomass Steam Generator, Quiet Operation, Quality Material, Multi-function
Biomass steam generators offer several advantages:
Renewable Energy Source: Biomass is considered a renewable energy source as it comes from organic materials that can be replenished.
Reduced Carbon Footprint: Biomass combustion releases carbon dioxide (CO2), but since plants absorb CO2 during their growth, the net emission is considered carbon-neutral or carbon-low. Compared to fossil fuel combustion, biomass-based steam generation can help reduce greenhouse gas emissions.
Energy Efficiency: Biomass steam generators can achieve high energy conversion efficiencies, making them an efficient option for producing steam and heat.
Fuel Availability: Biomass fuels are often locally available, reducing dependence on imported fossil fuels and promoting regional energy self-sufficiency.
Waste Utilization: Biomass steam generators can utilize various biomass feedstocks, including agricultural residues and wood waste, providing an opportunity to convert waste materials into useful energy.
Technical parameter:
| Type | / | 1T-0.7-S |
| Evaporation capacity | kg/h | 1000 |
| Working pressure | Mpa | 0.7 |
| Steam temperature | ℃ | 170 |
| thermal efficiency | / | ≥91% |
| Water capacity | L | 29L |
| Steam outlet | / | DN40 |
| Water inlet | / | DN25 |
| Sewage outlet | / | DN25 |
| Safety valve | / | DN40 |
| Flue diameter | mm | 219 |
| Fuel consumption | kg/h | 150 |
| Induced draft fan | w | 2200 |
| Blower | w | 1500 |
| Feeder | w | 250 |
| Water pump | w | 1100 |
| Transport weight | T | 3.5T |
| Overall dimensions | cm | 270*110*250 |
